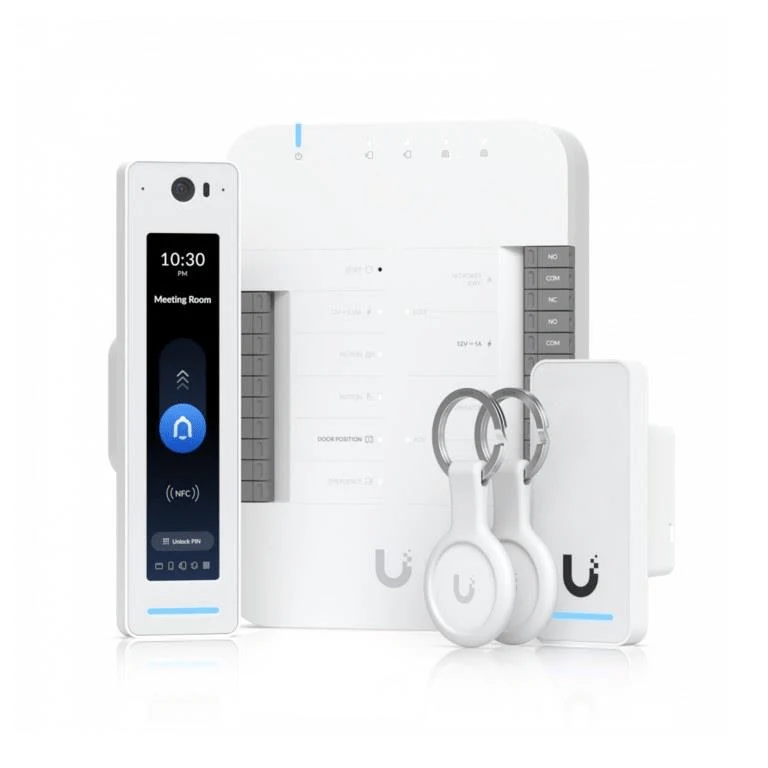

Ubiquiti UniFi Access G2 Pro Door Access Starter Kit UA-G2-SK-PRO

Ubiquiti UniFi Access G2 Pro Door Access Starter Kit UA-G2-SK-PRO

Hit the ground running with Access, featuring a professional experience for a door with two readers.

Features

• 1x Door Hub
• 1x G2 Reader Pro
• 1x G2 Reader for door exit, or entry for an additional door (second Hub required)
• 2x Pocket Keyfobs

Technical Specification

UA-Hub-Door - Mechanical
Dimensions: 174.9 x 126 x 32.9 mm
Weight: 363 g
Enclosure material: Polycarbonate
Mounting material: Polycarbonate

Hardware
Networking interface: 5x 10/100/1000 Base-T
Power method

• PoE++
• UL 294 Power-limited Class 2 PSU
• UL 60950/62368 LPS/PS2 PSU

Max. power consumption

• Without PoE output: 30W
• With PoE output: 50W

PoE input: 50V DC, 1A
PoE output: PoE passthrough, (4) PoE, 50V DC, total 20W
Button: 1x Factory-reset
LEDs System: white/blue
LEDs Output relays: white
Digital input: Request to exit/request to enter/remote release/door position sensor
Dry output relay

• Lock: 30V DC, 1A
• Aux: 30V DC, 1A

Powered output relay

• Lock: 12V DC, 1A
• Aux: 12V DC, 0.33A
• 12V DC, 0.33A

Operating environment: Indoor use only

UA-G2-Pro - Mechanical
Dimensions: 160 x 40.4 x 40.55 mm
Weight: 136 g
Enclosure material: Polycarbonate, glass
Mount material: Aluminum alloy
Mounting: Wall, gang box
Weatherproofing: IP55

Hardware
Networking interface: 1x GbE RJ45 port
Connectivity: BLE 4.2 , NFC
Power method

• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range: 48V DC
Max. power consumption: 6W
ESD/EMP protection: Air: ±15kV, contact: ±8kV
Sensor: Proximity sensor
Camera: 4000 x 3000, 12 MP, 30 FPS
View angle: H: 96.67°, V: 123.15°, D: 153.11°
Microphone: Yes
Speaker: 1x 4 ohm, 1.5W
LEDs: R/G/B/W, Flash
Button: 1x Factory-reset
NFC frequency: 13.56 MHz
NFC read range: < 30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology

• NFC Tag 1,2,3,4,5
• MIFARE Classic
• MIFAREPlus
• MIFARE Ultralight
• MIFARE DESFire

Operating environment: Outdoor use

UA-G2 - Mechanical
Dimensions: 93 x 40 x 36.5 mm
Weight: 82 g
Enclosure material: Polycarbonate, glass
Mounting: In wall, gang box
Weatherproofing: IP55

Hardware
Networking interface: 1x 10/100 MbE RJ45 port
Connectivity: BLE 4.1
Power method

• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range: 48V DC
Max. power consumption: 5W
ESD/EMP protection: Air: ±15kV, contact: ±8kV
Sensors: Proximity sensor
Speaker: 1x 8 ohm, 0.7W
LEDs: R/G/B/W
Button: 1x Factory-reset
NFC frequency: 13.56 MHz
NFC read range: < 30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology

• NFC Tag 1,2,3,4,5
• MIFARE Classic
• MIFAREPlus
• MIFARE Ultralight
• MIFARE DESFire

Operating environment: Outdoor use

UA-Pocket - Mechanical
Dimensions: 84 x 39 x 7.4 mm
Weight: 16 g
Enclosure material: Polycarbonate, stainless steel
Weatherproofing: IP54

Hardware
NFC frequency: 13.56 MHz
NFC technology

• ISO/IEC 14443 Type A
• MIFARE DESFire EV3 4K
• UniFi Access Proprietary Security Protocol
