Original: $559.56
-70%$559.56
$167.87The Story

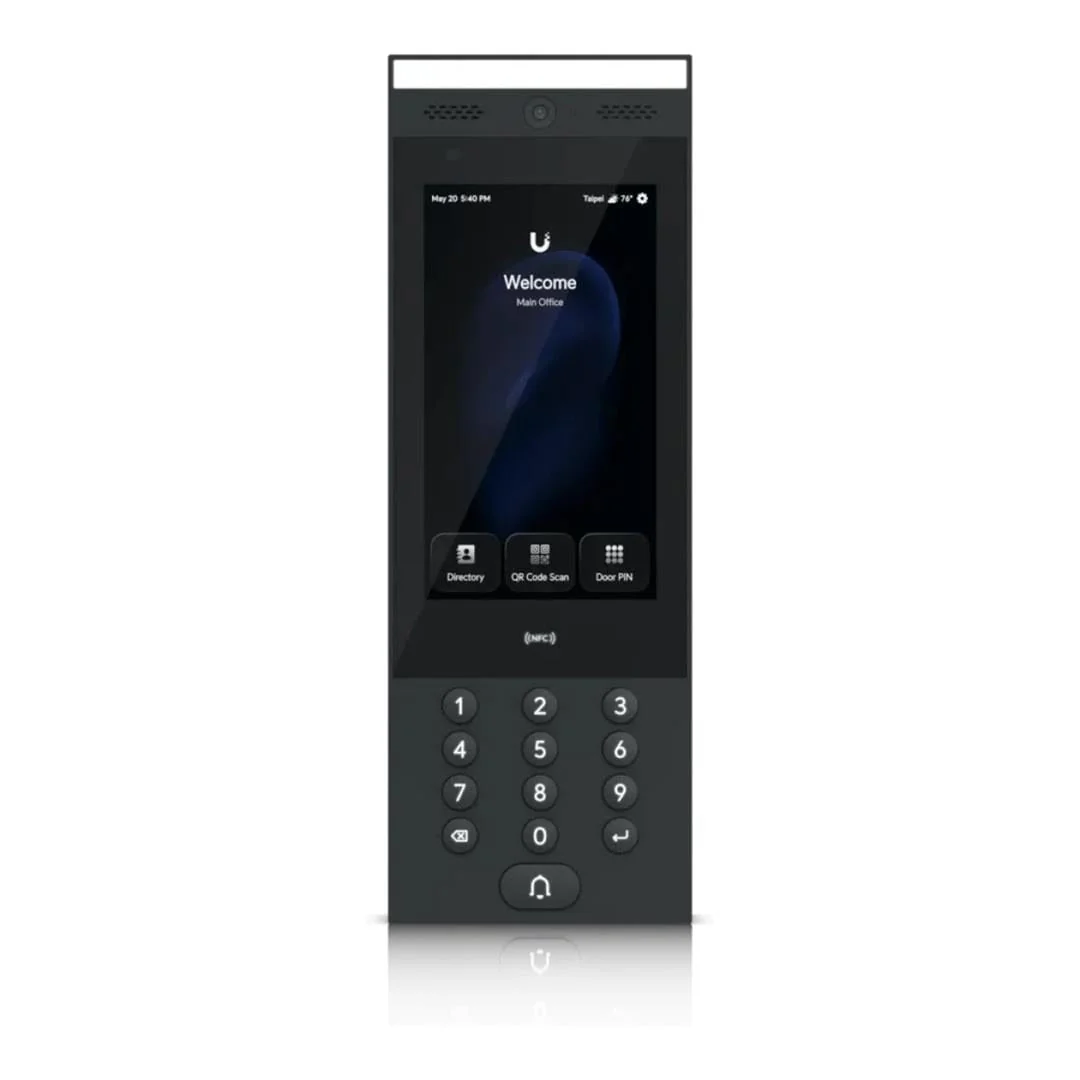

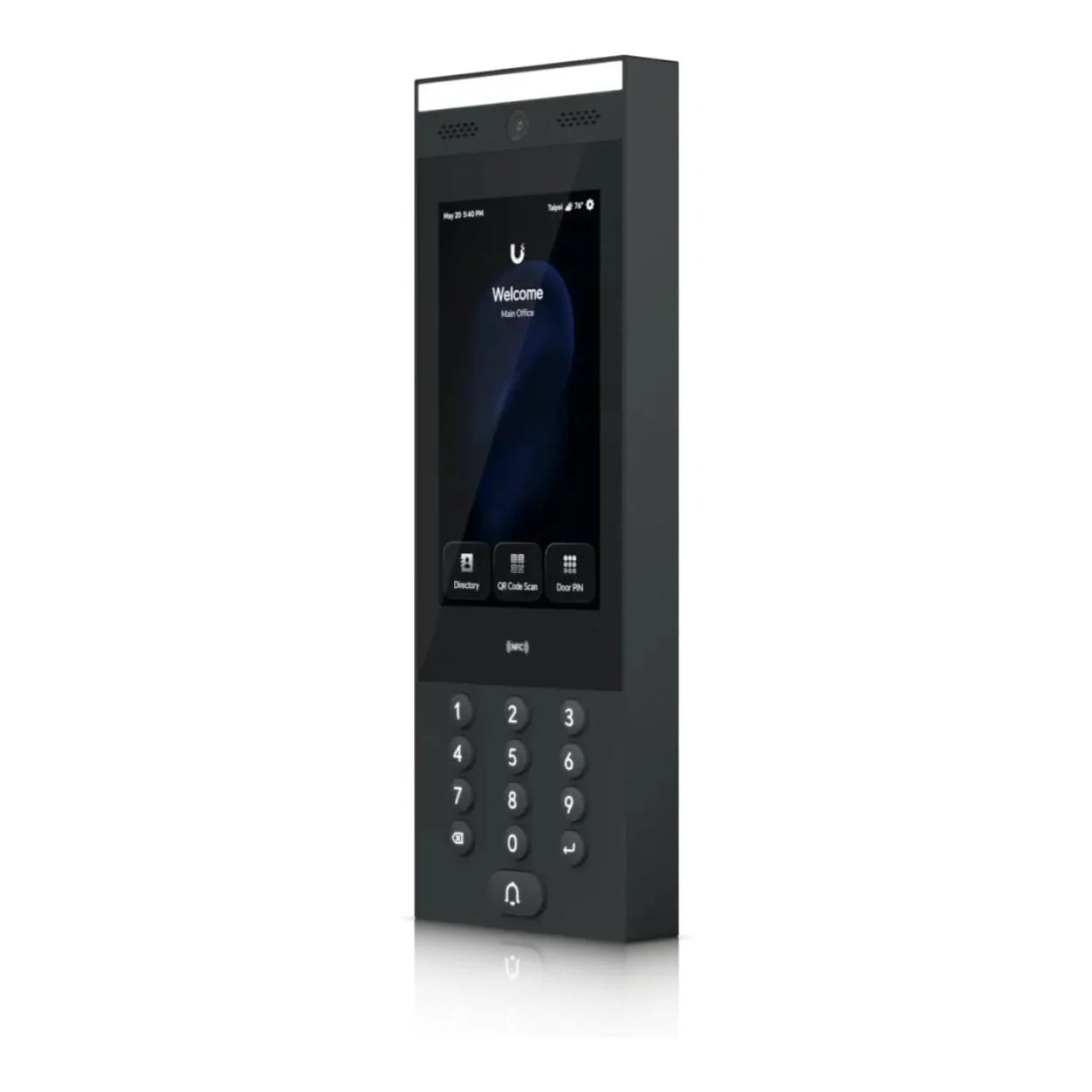

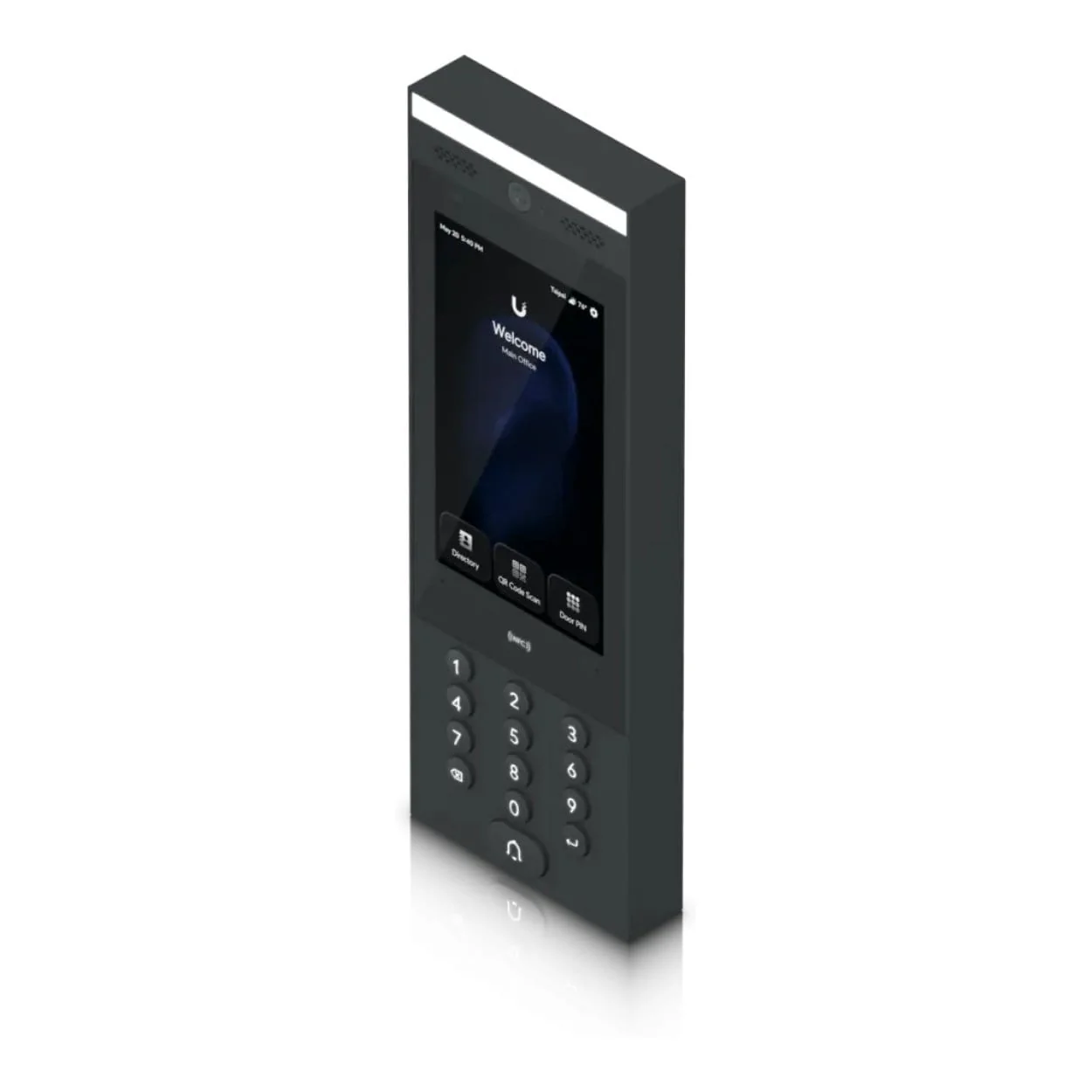

Ubiquiti UniFi Access G3 Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Apple or Google Wallet Unlocking, NFC Card, UniFi Identity App, PIN code or QR Code, Connects to UniFi Access Hub, IP55
Technical Specifications:
Dimensions: 324.8 × 113.7 × 28.3 mm (12.8 × 4.5 × 1.1")
Integrated Camera: Yes
NFC Card & Keyfob Access: Yes
PIN Access: Yes
Apple/Google Wallet: Yes
Mobile Unlock: Yes
Two-Way Intercom & Doorbell Access: Yes
NDAA Compliant: Yes
UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
Weatherproofing: IP65
Mechanical
Weight: Device: 965 g (2.1 lb), Bracket: 445 g (1 lb)
Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material: Powder-coated stainless steel
Mounting: Wall mount, adapter to the gooseneck pedestal (Included), Surface angle, flush mount, sunshield kit (Optional)
Hardware
Indoor and Outdoor Use: Yes
Ambient Operating Temperature: Device: -30 to 60 °C (-22 to 140 °F), Display: -25 to 60 °C (-13 to 140 °F)
Ambient Operating Humidity: 5 to 90% noncondensing
Networking Interface: (1) GbE RJ45 port
Connectivity: BLE 4.2, NFC
Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 13W
Supported Voltage Range: 48V DC
Sensors: Proximity sensor, ALS sensor
Display
Diagonal: 177 mm (7")
Touch Screen Technology: Capacitive multi-touch
Display Luminance: Max. 1000 nits (Typical)
Screen Orientation: Portrait
Resolution: 1024 × 600 px
Audio
Microphone: Yes
Speaker: Yes
NFC
Frequency: 13.56 MHz
Read Range: < 30 mm (1.18")
Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa™ (ID only), NFC Forum tags T1T, T2T, T3T, T4T, T5T, ECP 2.0
LEDs: Amber
Buttons: (1) Factory-reset
PoE Cabling Requirements: Cat 5e minimum; 26 AWG for patch cords, 24 AWG for horizontal/riser cable. UL 294 compliance for IEEE 802.3 not verified; meets ANSI/NFPA 70, Article 725.121, Class 2 & 3 circuits.
CAN/ULC-60839-11-1 Grade: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document: UA-G3-Intercom, V01
