Ubiquiti UniFi PowerAmp 2.1-Channel Integrated Amplifier with Wi-Fi - White UPL-AMP-W

Ubiquiti UniFi PowerAmp 2.1-Channel Integrated Amplifier with Wi-Fi - White UPL-AMP-W

Provide streaming music to a pair of passive speakers with the Ubiquiti UPL-Amp Stereo Integrated Amplifier in white. The UPL-Amp features a modern and compact design, built-in Wi-Fi for streaming and control, and the ability to group up to 32 amps on a single network, making this well suited to multi-zone multi-room audio in business and home environments.

Features

• HDMI eARC and stereo RCA inputs
• Capable of decoding Dolby and PCM audio signals via HDMI eARC
• 1.43" rotary knob with touchscreen
• Multi-color LED status ring
• Fit two amps side-by-side in equipment racks

Network Connectivity and Streaming

Connect to your network via built-in Wi-Fi or RJ45 Gigabit Ethernet inputs to enable streaming and control with the UniFi Play mobile app for iOS and Android. The UniFi Play app provides setup, management, and group control of up to 32 UPL-Amp amplifiers. Additionally, you can stream directly with low latency using AirPlay 2 and Spotify Connect from your network connected mobile device.

2.1-Channel Output

The UPL-Amp can supply up to 130W per channel at 8 ohms and comes with custom-designed banana plugs to connect your speaker wires. In addition to one pair of passive speakers, you can connect an active subwoofer via RCA output.

Technical Specifications

Dimensions: 217 x 236.8 x 63.7 mm

Weight: 2.4 kg

Enclosure Material: Plastic

Mounting: Desktop

Colour: Black

Networking Interface: (2) Gigabit Ethernet RJ45 ports

Wi-Fi Standards: 802.11 a/b/g/n/ac

Connectivity: Wi-Fi 2.4 GHz (20/40 MHz); Wi-Fi 5 GHz (20/40/80 MHz)

Power Method: Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz

Power Consumption: 17W

LEDs: LED ring

LCM Display: 1.43" rotary knob with touchscreen

Button: Factory reset

Operating Temperature: -5 to 40°C

Operating Humidity: 5 to 90% noncondensing

Certifications: FCC, IC, CE

Per Channel Power (Continuous): 130W at 8Ω, 1 kHz, <0.05% THD+N; 260W at 4Ω, 1 kHz, <0.09% THD+N

Amplifier Class: Class D

Output: Mono/Stereo sound

Surround Format Support: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Stereo PCM, Multichannel PCM

Grouping: Supports up to 32 PowerAmps

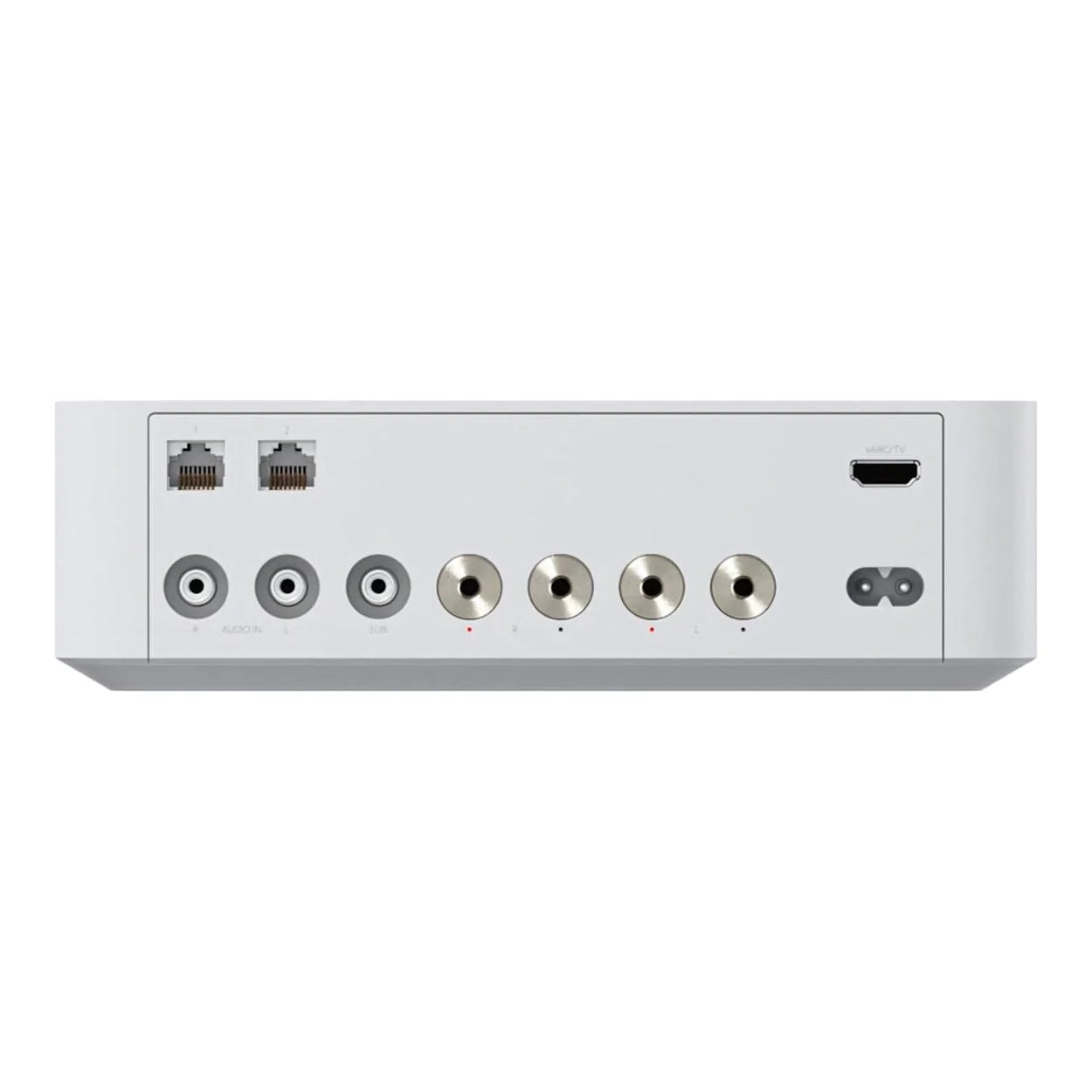

Audio Inputs: (1) HDMI eARC input; (2) RCA analog inputs (L/R)

Audio Outputs: (1) RCA analog subwoofer output; (2) Speaker terminal outputs with included banana plugs

Streaming Support: Apple AirPlay 2, Spotify Connect, Soundtrack Your Brand
