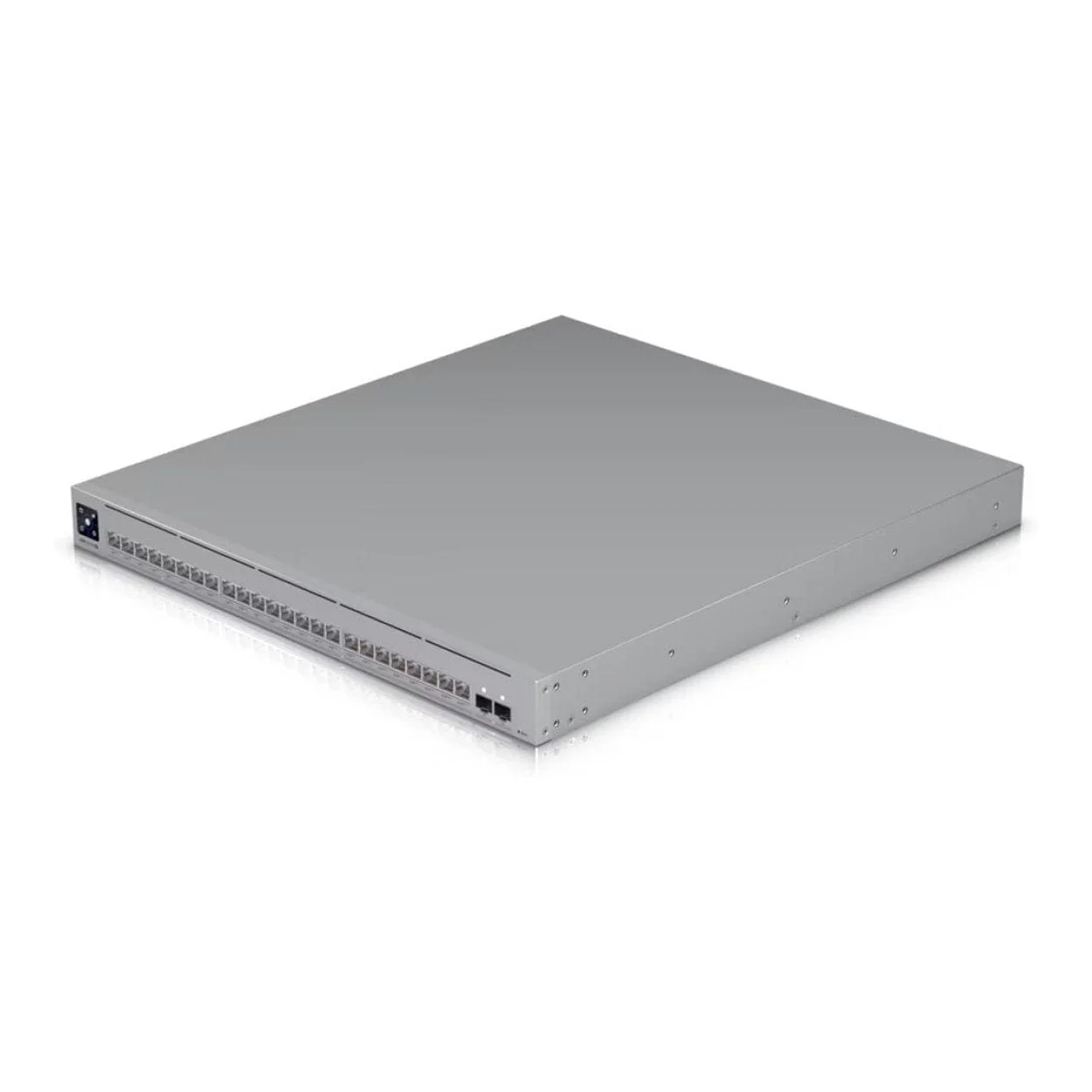

Ubiquiti Unifi Pro XG 24 24-port 2.5G 10G PoE 4 Compliant Managed Network Switch USW-PRO-XG-24-POE

Ubiquiti Unifi Pro XG 24 24-port 2.5G 10G PoE 4 Compliant Managed Network Switch USW-PRO-XG-24-POE

Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

Technical Specifications:
Form Factor: Rack mount (1U)
Weight: 7.9 kg (17.4 lb) without brackets / 8 kg (17.6 lb) with brackets
Material: SGCC steel enclosure and mount
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Operating Humidity: 10–90% (non-condensing)
Certifications: CE, FCC, IC, Anatel
Compliance: NDAA Compliant
Display: 1.3" Touchscreen (LCM)
Protection: ESD Air ±30kV / Contact ±20kV
Etherlighting™: Supported (Ethernet & SFP28)

Ports
2.5 GbE RJ45 (PoE+++): 8 ports (2.5G/1G/100M/10M)
10 GbE RJ45 (PoE+++): 16 ports (10G/5G/2.5G/1G/100M/10M)
25G SFP28: 2 ports (25G/10G/1G)
Max PoE Output: Up to PoE+++
Total PoE Power Budget: 720W
Redundancy: DC Power Backup

Performance
Switching Capacity: 460 Gbps
Non-Blocking Throughput: 230 Gbps
Forwarding Rate: 342 Mpps
Supported VLANs: 1,000
MAC Address Table: 128,000
ARP Entries: 128,000
IPv4 Routes: 256,000
Packet Buffer: 8 MB
Access Lists: IPv4 – 256, MAC – 256

Layer 3 Features
DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing

Layer 2 Features
LACP, STP/RSTP, QoS (DSCP), IGMP Snooping & Advanced IGMP, LLDP-MED, Voice VLAN, Loop Protection, Port Mirroring, Jumbo Frames, Port Isolation, Rate Limiting, MAC/IP ACLs, DHCP Snooping & Guard, Flow & Storm Control, Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Hardware & Power
PoE Ports: 24 (PoE+++)
Max Power per Port:

• PoE: 15.4W

• PoE+: 30W

• PoE++: 60W

• PoE+++: 90W
  Max Power Consumption: 150W (excluding PoE), 870W (including PoE)
  Power Supply: Internal AC/DC 870W, 100–240V AC, 50/60 Hz
  Backup Power: USP RPS DC input

Management
Software: UniFi Network (version 9.1.120 or later)
Management Interface: Ethernet (AR)

Mounting
Supports 19" four-post racks (depth 600–1066 mm / 23.6–42")

Dimensions: 442 × 480 × 44 mm (17.4 × 18.9 × 1.7")
