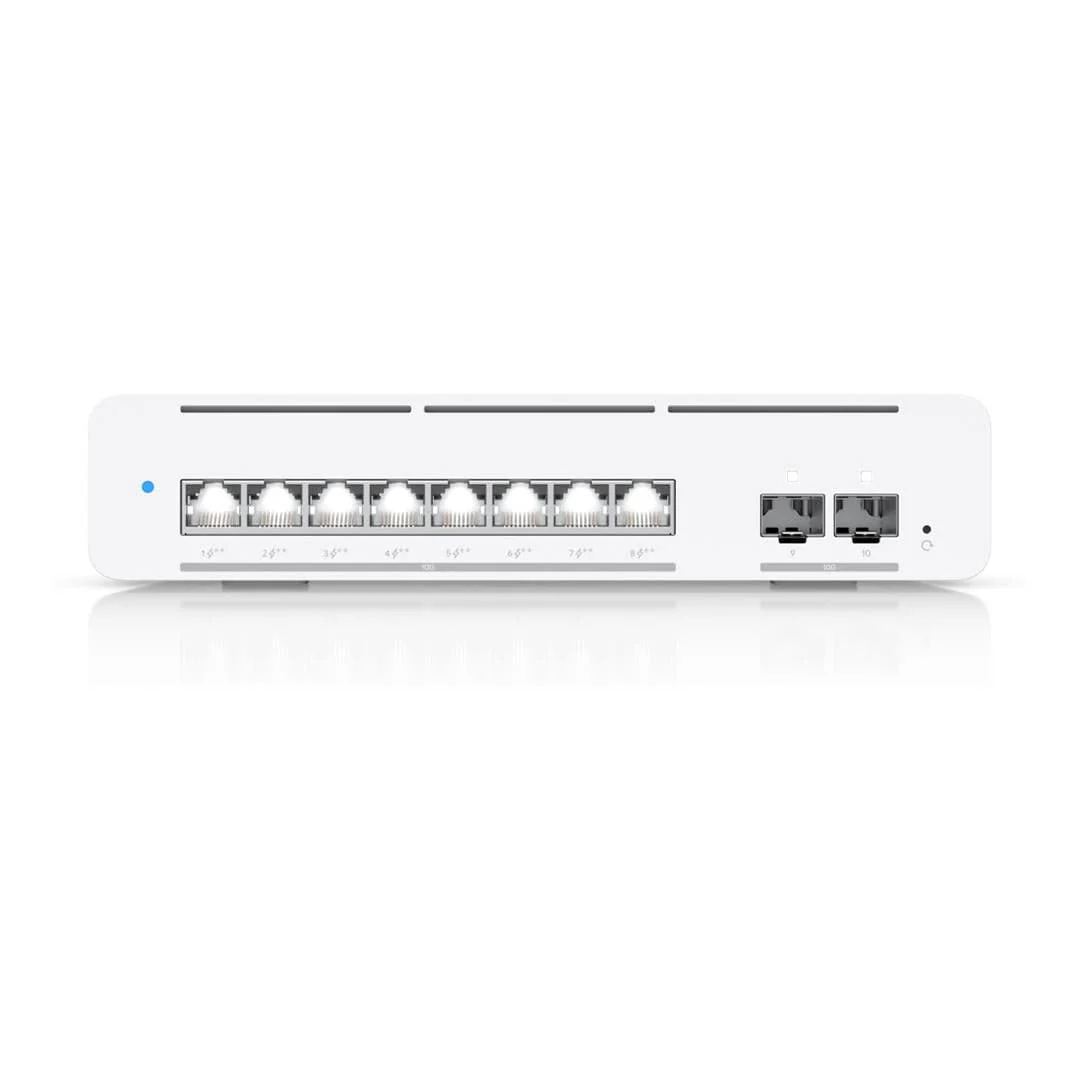

Ubiquiti UniFi Pro XG 8-port 155W PoE Switch USW-PRO-XG-8-POE

Ubiquiti UniFi Pro XG 8-port 155W PoE Switch USW-PRO-XG-8-POE

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

Technical Specifications:

Form Factor: Compact desktop / wall-mount
Weight: 1.6 kg (3.5 lb)
Material: SGCC steel enclosure, polycarbonate mount
Operating Temperature: -5°C to 45°C (23°F to 113°F)
Operating Humidity: 10–90% non-condensing
Certifications: CE, FCC, IC, NDAA Compliant
Etherlighting™: Supported (Ethernet & SFP+)

Ports
10 GbE RJ45 (PoE++): 8 ports (10G/5G/2.5G/1G/100M)
10G SFP+: 2 ports (10G/1G)
Max PoE Output: Up to PoE++
Total PoE Power Budget: 155W

Performance
Switching Capacity: 200 Gbps
Non-Blocking Throughput: 100 Gbps
Forwarding Rate: 149 Mpps
Supported VLANs: 1,000
MAC Address Table: 32,000
ARP Entries: 12,000
IPv4 Routes: 12,000
Packet Buffer: 2 MB
Access Lists: IPv4 – 128, MAC – 128

Layer 3 Features
DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing

Layer 2 Features
LACP, STP/RSTP, QoS (DSCP), IGMP Snooping & Advanced IGMP, LLDP-MED, Voice VLAN, Loop Protection, Port Mirroring, Jumbo Frames, Port Isolation, Rate Limiting, MAC/IP ACLs, DHCP Snooping & Guard, Flow & Storm Control, Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Hardware & Power
PoE Ports: 8 (PoE++)
Max Power per Port:

• PoE: 15.4W

• PoE+: 30W

• PoE++: 60W
  Max Power Consumption: 61W (excluding PoE), 210W (including PoE)
  Power Supply: External AC/DC adapter, 50–57V DC

Management
Software: UniFi Network (Version 9.0.114 or later)
Management Interface: Ethernet

Dimensions: 210.4 × 173.8 × 43.7 mm (8.28 × 6.84 × 1.7")
