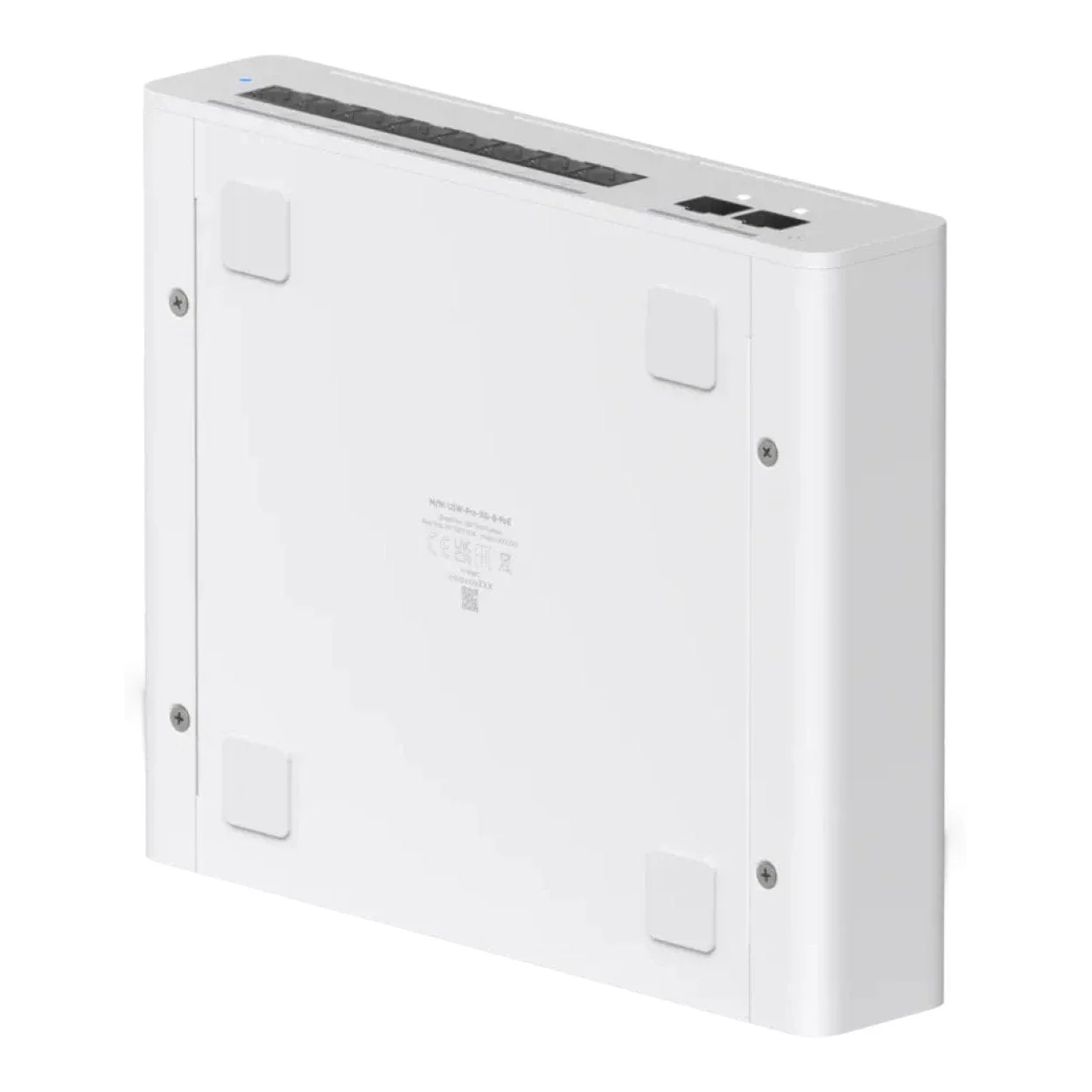

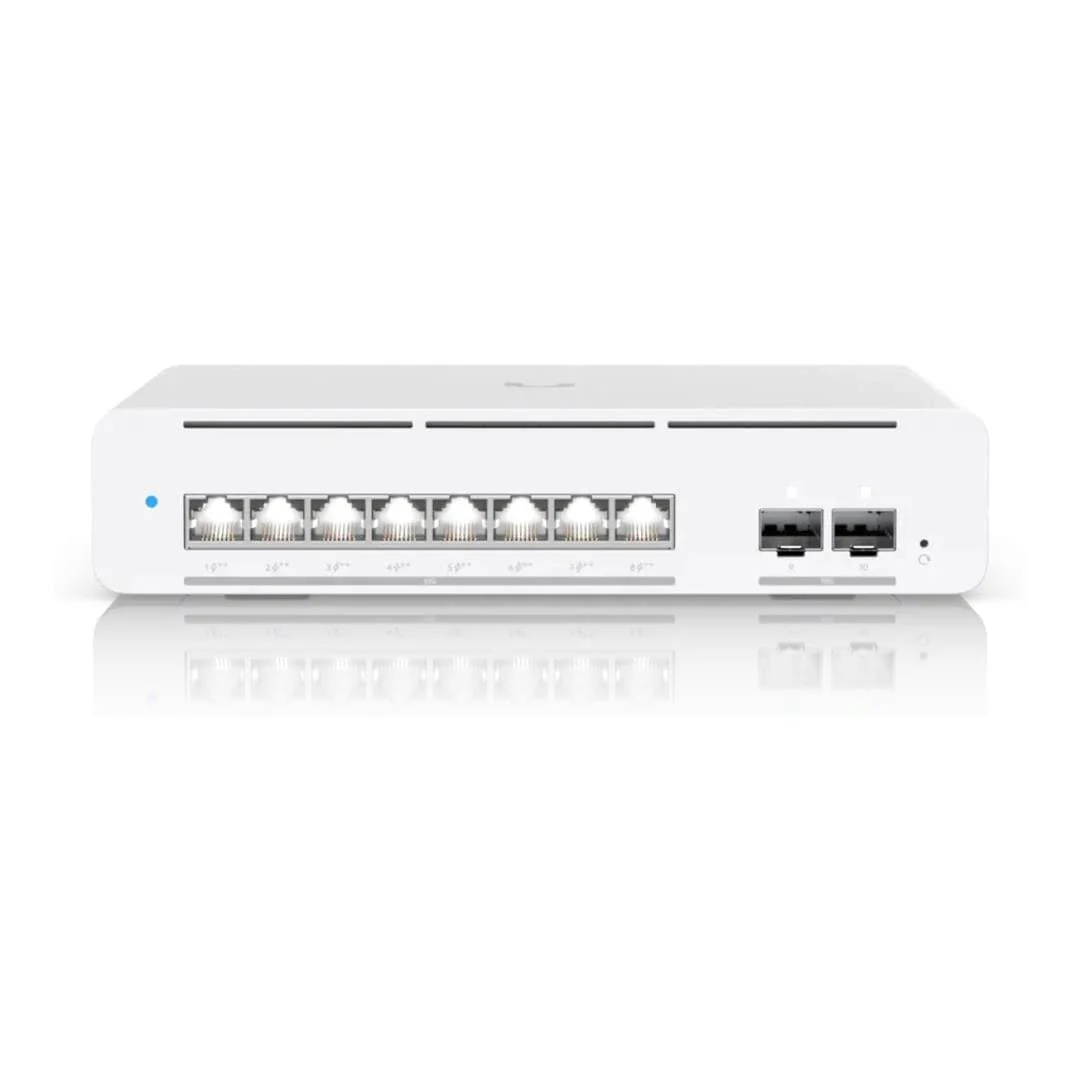

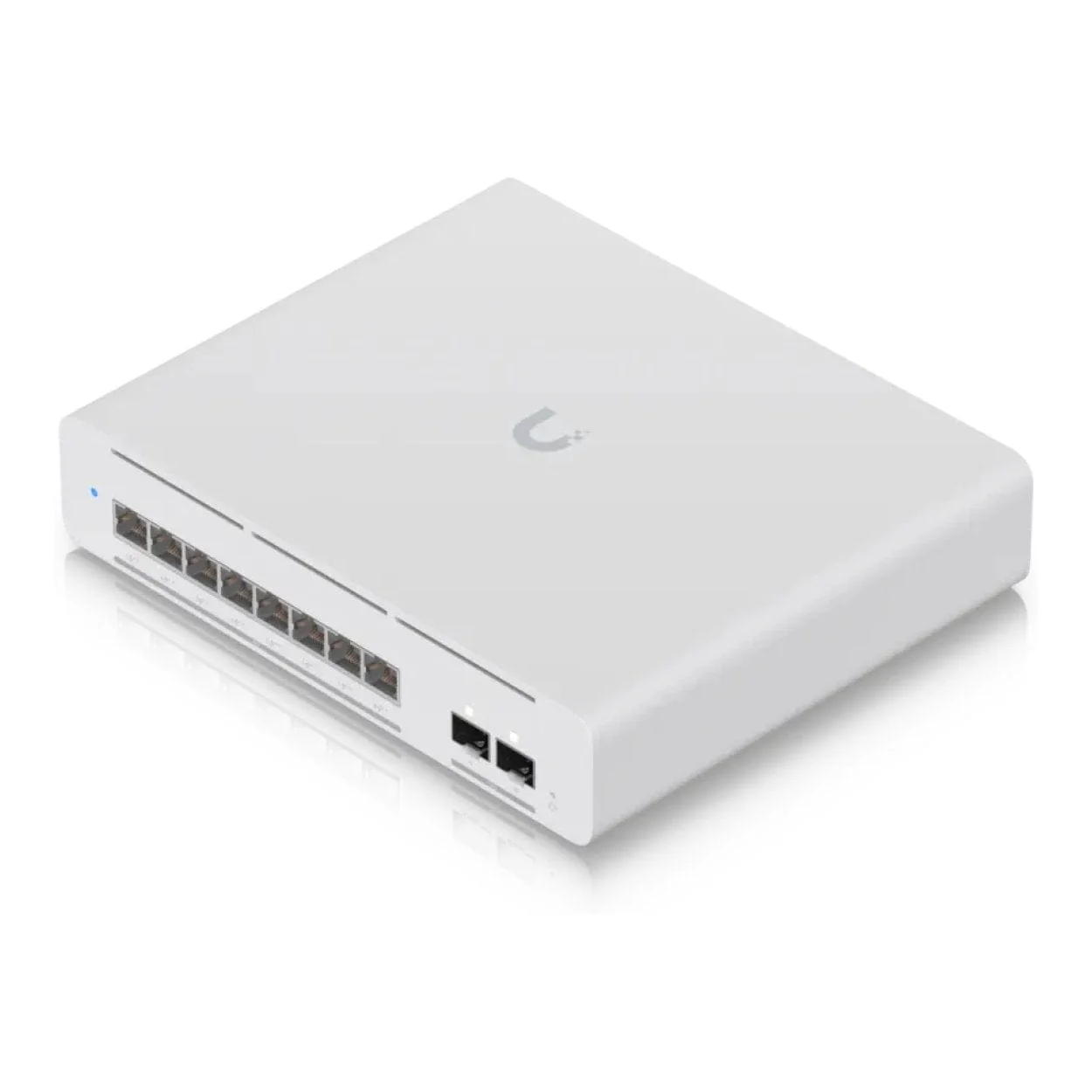

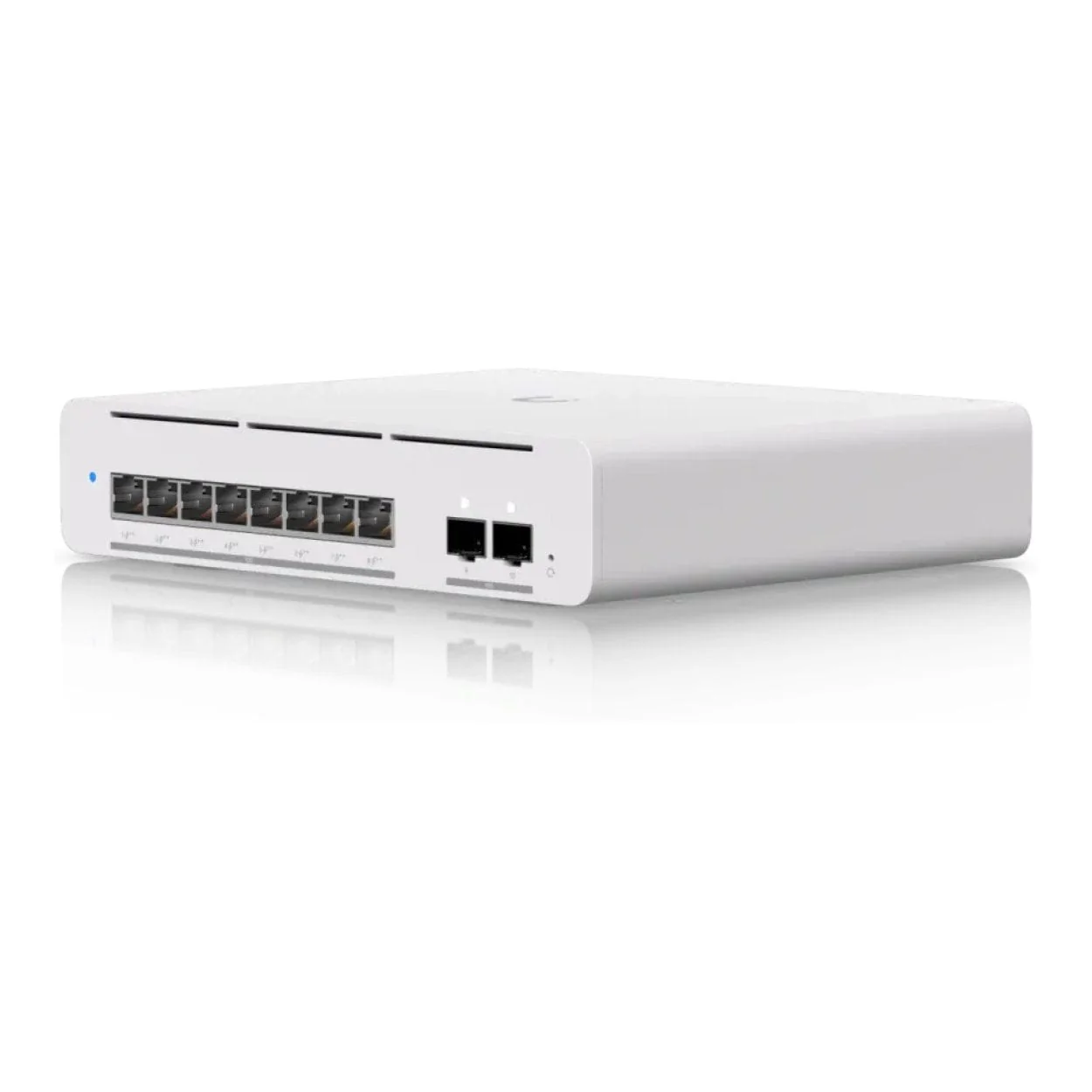

Ubiquiti UniFi Pro XG 8 Port 155W PoE Switch USW-PRO-XG-8-POE-EU

Ubiquiti UniFi Pro XG 8 Port 155W PoE Switch USW-PRO-XG-8-POE-EU

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

Technical Specifications:

Performance
Switching Capacity: 200 Gbps
Total Non-Blocking Throughput: 100 Gbps
Forwarding Rate: 149 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size:
ARP Entries: 12,000
IPv4 Routes: 12,000
Packet Buffer Size: 2 MB
Access Lists:
IPv4: 128
MAC: 128

Layer 3 Features
DHCP Server (Local Networks): ✓
DHCP Relay: ✓
Inter-VLAN Routing (Local Networks): ✓
Static Routing (Local Networks): ✓

Layer 2 Features
LACP Port Aggregation: ✓
STP & RSTP: ✓
QoS (DSCP): ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
IGMP Snooping: ✓
802.1X Control: ✓
MAC-Based ACLs & Device Isolation: ✓
DHCP Snooping & Guarding: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
MAC Address Blocking: ✓
IP-Based ACLs & Network Isolation: ✓
MAC-Based Port Restriction: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
LLDP-MED: ✓
Voice VLAN: ✓
Loop Protection: ✓

Hardware
PoE Ports: 8 (PoE++)
Max. PoE Wattage per Port by PSE:
PoE: 15.4W
PoE+: 30W
PoE++: 60W
Max. Power Consumption: 61W (Excluding PoE), 210W (Including PoE)
Power Method: AC/DC Adapter (included)
Power Input Method: DC input
Power Supply: AC/DC, external, 210W
Supported Voltage Range: 50–57V DC

Management
Ethernet

Weight
1.6 kg (3.5 lb)

Enclosure Material
SGCC steel

Mount Material
Polycarbonate

ESD Protection
Air: ±30kV, Contact: ±30kV

Ambient Operating Temperature
-5 to 45°C (23 to 113°F)

Ambient Operating Humidity
10 to 90% noncondensing

Etherlighting™
Ethernet: ✓
SFP+: ✓

LEDs
System: ✓

NDAA Compliant
✓

Certifications
CE, FCC, IC
