UltraLAN Fiber to Gigabit RJ45 Converter 1PEM1100SSXX

UltraLAN Fiber to Gigabit RJ45 Converter 1PEM1100SSXX

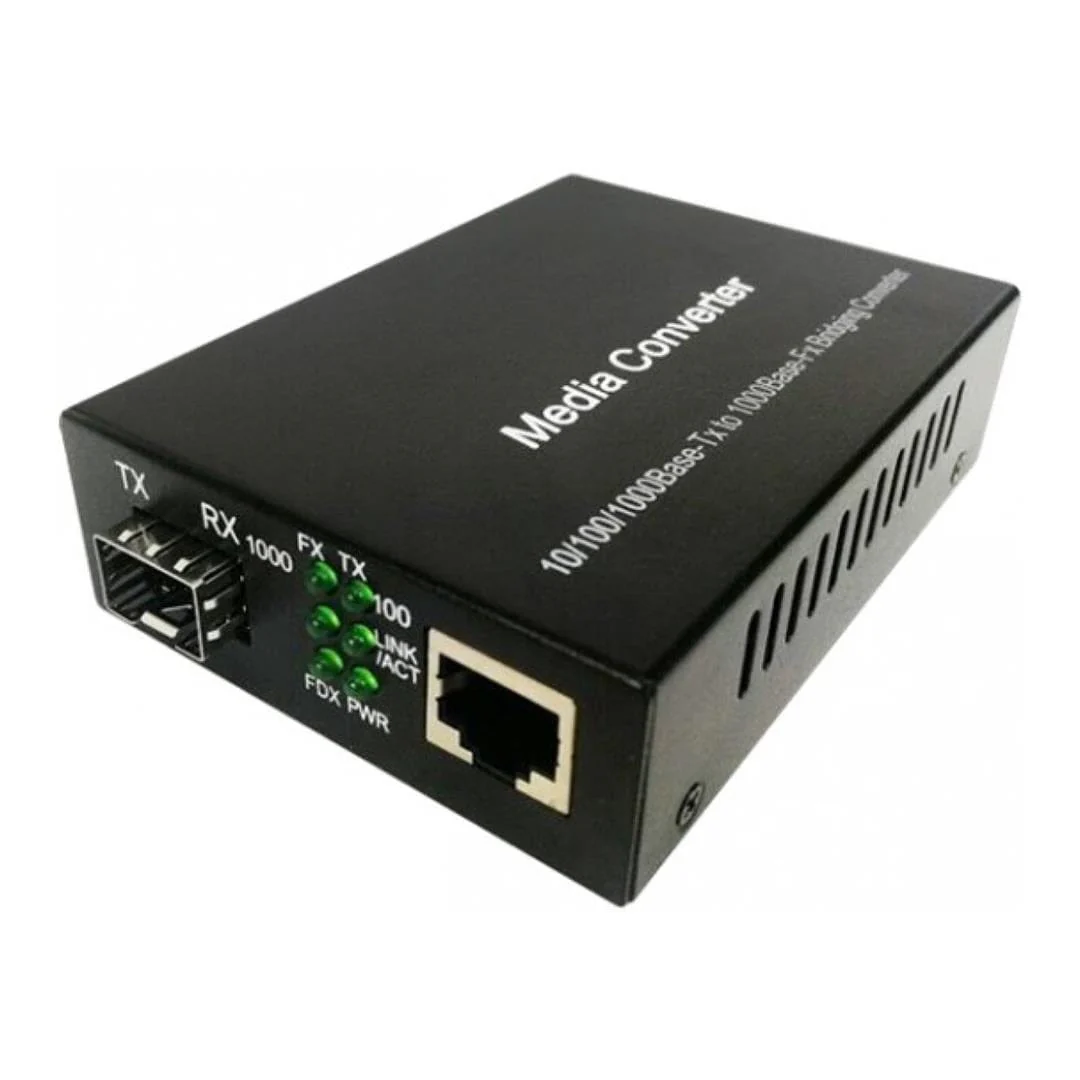

The UltraLAN FIB-MCGSFP is a media converter designed to convert fiber to 10/100/1000Base-T copper media or vice versa.

The UltraLAN media converters are compatible with a wide range of transceiver modules, such as general 1000Base SFP transceiver modules, BiDi transceiver modules, CWDM transceiver modules, etc. The media converter is unmanaged and requires no configuration, simply plug-and-play.

Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the FIB-MCGSFP is designed for use with multi-mode or single-mode fiber SFP modules. The fiber media converter supports 850nm/1310nm/1550nm wavelengths depending on the SFP module that is inserted. Other features of this media converter include Auto MDI/MDI-X for TX port and status LED's (Link speed, Link activity, Power).

Features:

• Gigabit copper to fiber conversion: 10/100/1000Base-T-to-1000Base-X
• SFP design: For flexibility, an SFP (Mini-GBIC) slot is provided for the fiber port to support any type of SFP fiber transceiver when needed.
• Supports full wire speed copper-to-fiber conversion
• Auto MDI/MDI-X detection function on the copper port
• Auto-negotiation support
• Plug and play: no configuration settings is required
• Low power consumption
