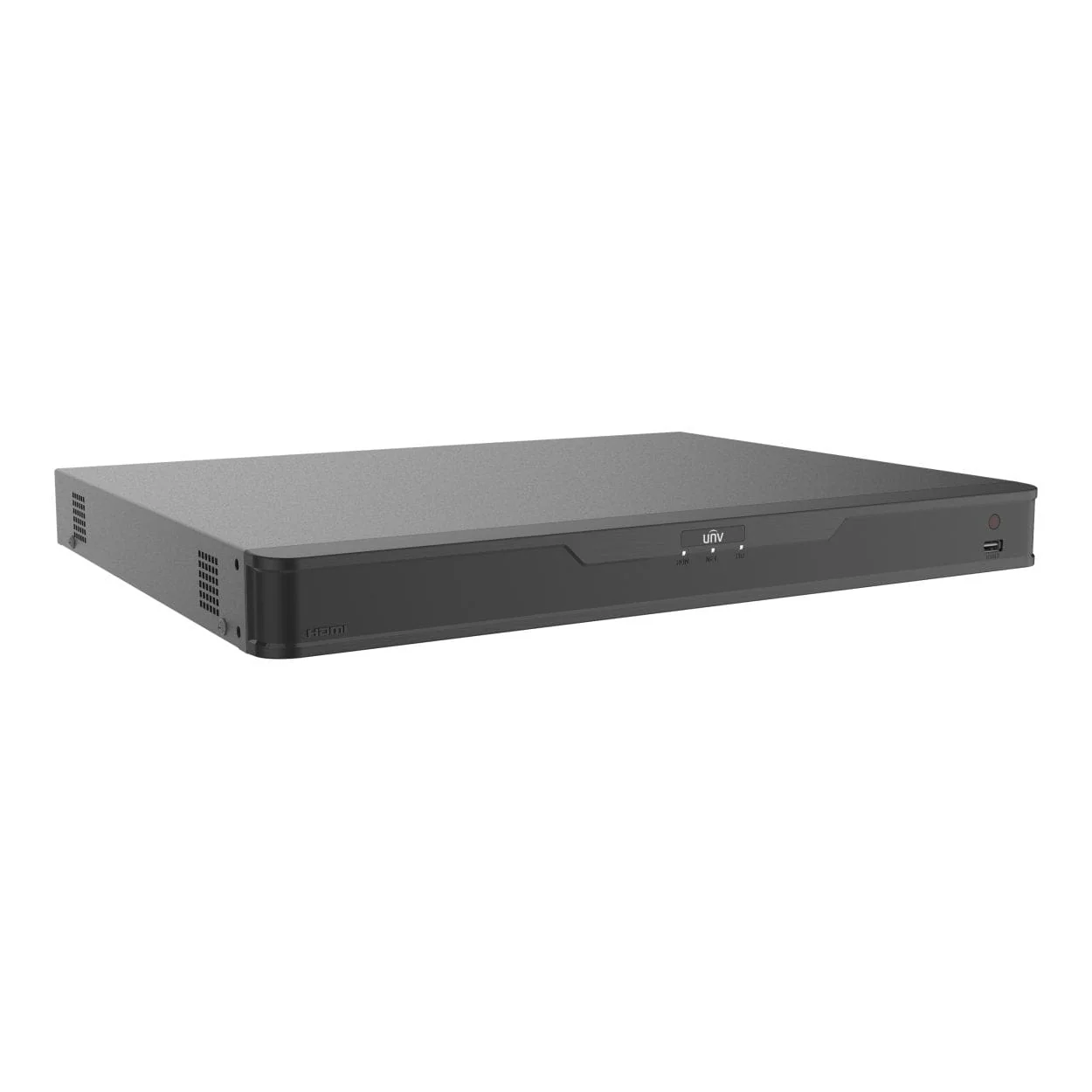

Uniview Easy Series 16-ch 1U Network Video Recorder NVR304-16B-IQ

Uniview Easy Series 16-ch 1U Network Video Recorder NVR304-16B-IQ

Features

• Support Ultra H.265/H.265/H.264 video formats
• 16 channel
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Technical Specification

IP Video: 16-ch (Note: Additional switch required to connect camera's)

RCA Audio Input: 1-ch

RCA Audio Output: 1-ch

Incoming Bandwidth: 160 Mbps

Outgoing Bandwidth: 128 Mbps

Decoding Format: Ultra 265,H.265,H.264

Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

Two-way Audio: 1-ch, RCA(Using the audio input and output)

SATA: 4x SATA Interfaces, up to 10TB for each HDD

Front panel: 1x USB2.0

Rear panel: 1x USB2.0, 1x USB3.0

Alarm In: Not supported

Alarm Out: Not supported

Network Interfaces: 2x RJ45 10M/100M/1000M self-adaptive Ethernet Interface

Weight: Starting at 3.40 kg
