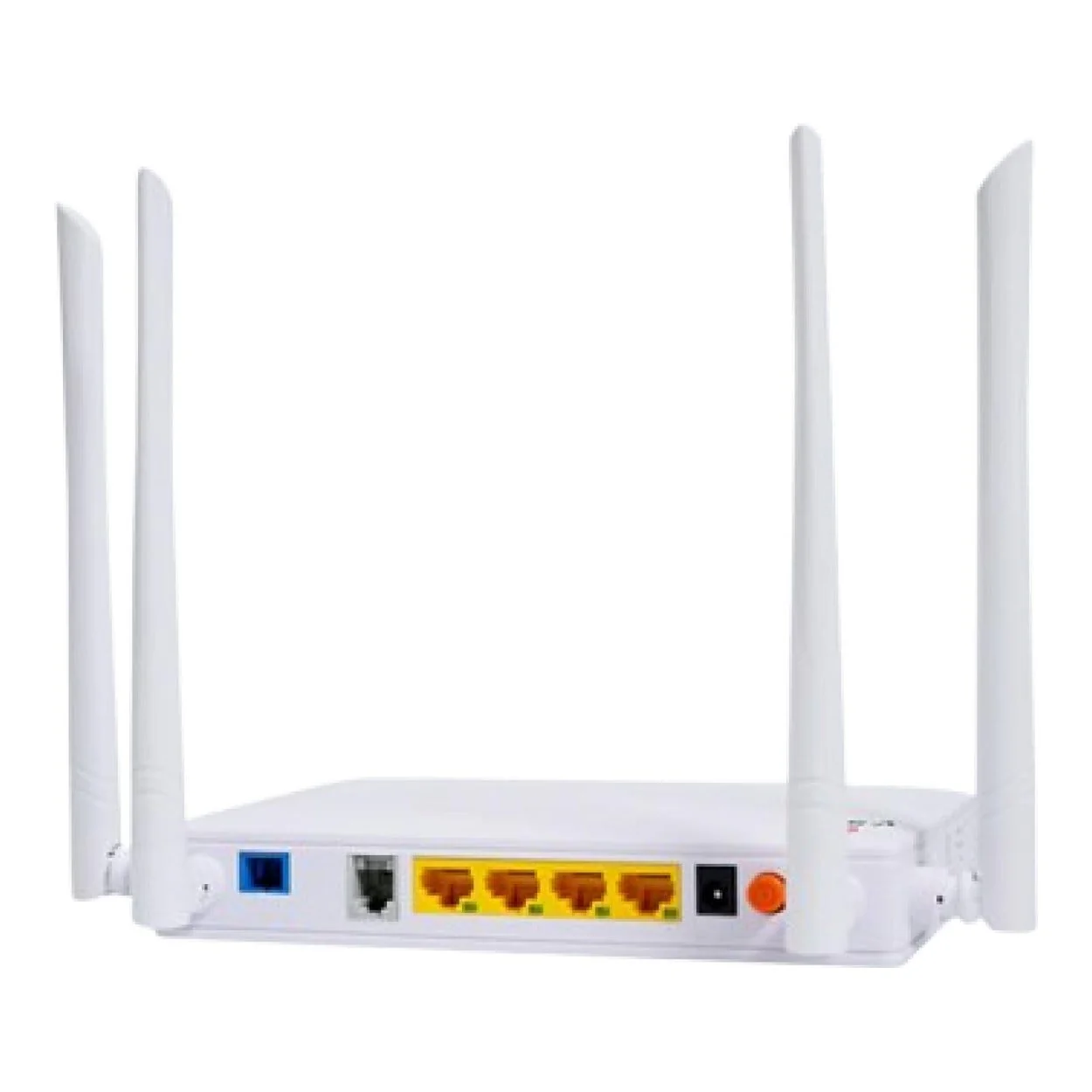

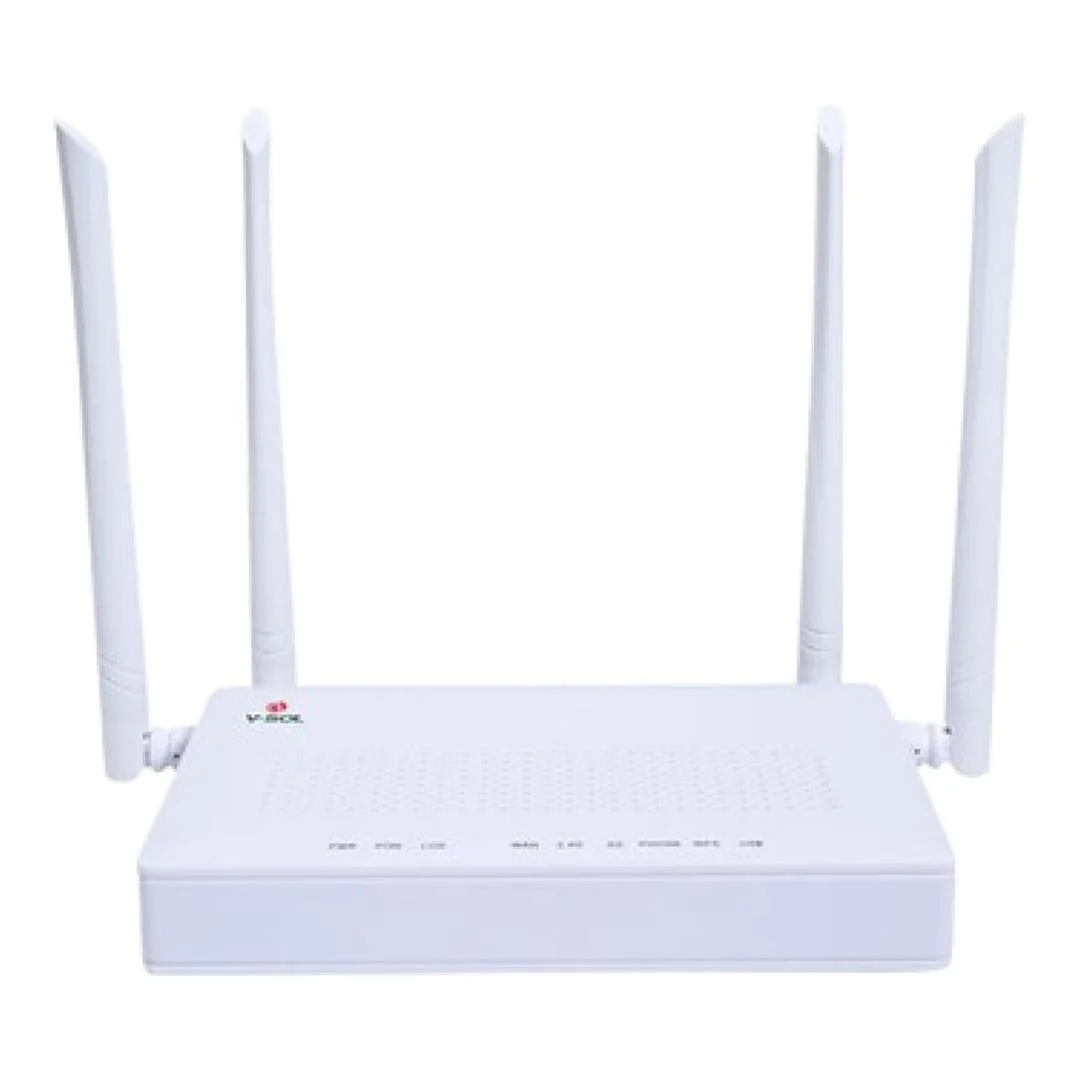

V-SOL 5-port Wi-Fi Dual-band ONT Router HG3221D-4G1S

V-SOL 5-port Wi-Fi Dual-band ONT Router HG3221D-4G1S

V-SOL Dual-band Gigabit Wi-Fi 5 Router

 MTK Wi-Fi 5 Chipset | 1200Mbps | IPV4/IPV6 | USB 3.0

Multiple Interfaces for Casual Connection

4GE + 1POTS + 1 USB 3.0 + Wi-Fi 5 HGU

Dual-band Concurrency Wi-Fi 5

4×5dBi High Gain External Antennas

How to place the router for the best effect?

Specifications:

PON Interface

• 1XPON port(EPON PX20+ and GPON Class B+)
• SC single mode, SC/UPC connector
• TX optical power: 0～+4dBm
• RX sensitivity: -27dBm
• Overload optical power: -3dBm(EPON) or -8dBm(GPON)
• Transmission distance: 20KM
• Wavelength: TX 1310nm, RX1490nm

User interface

• 4×GE, Auto-negotiation,RJ45 ports
• 1×POTS(2×RJ11 option) RJ11 Connector

Antenna: 4T4R, 5dBi external antennas

USB: 1×USB 3.0 for Shared Storage

VoIP

• SIP and IMS SIP
• Codec∶G.711/G.723/G.726/G.729 codec
• Echo cancellation,VAD/CNG,DTMF
• T.30/T.38 FAX
• Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
• Line testing according to GR-909

WIFI

• Support Frequency:2.4 GHz,5GHz
• IEEE 802.11a/n/ac Wi-Fi@ 5GHz(2×2)
• IEEE 802.11b/g/n [email protected](2×2)
• Multiple SSIDs for each band
• WEP/WPA-PSK(TKIP)/WPA2-PSK(AES) Security
