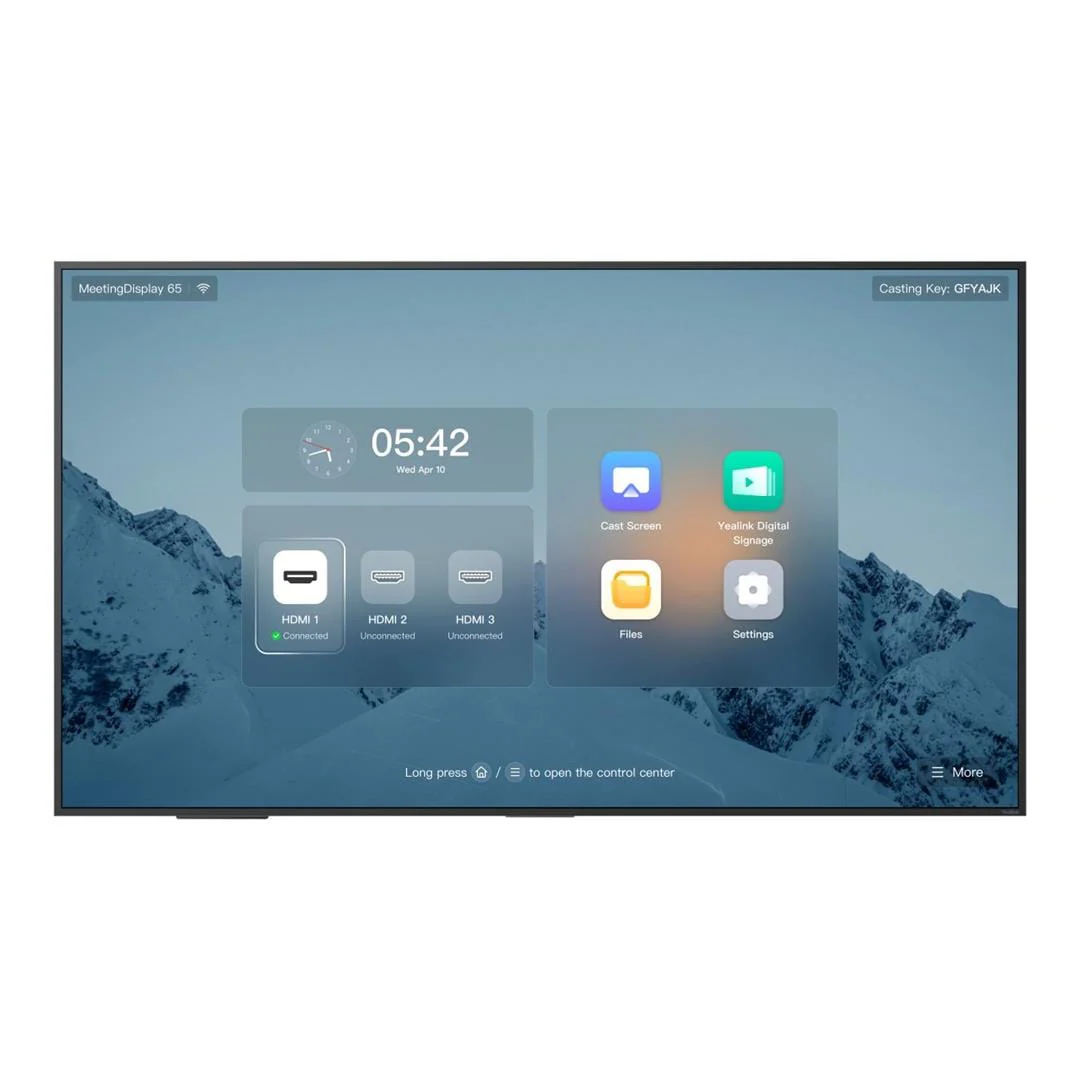

Yealink 65-inch Video Conferencing MeetingDisplay

Yealink 65-inch Video Conferencing MeetingDisplay

The Yealink MeetingDisplay is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. The MeetingDisplay and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the MeetingDisplay without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, the meeting solution, led by the MTR system, can be centrally managed via YMCS/YDMP. Finally, this solution allows MeetingDisplay and MTR devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.

Features:

• Unified installation, the customised structure makes installation easy
• Unified coordination, supports digital signage, sleep, and wake-up functions
• Unified management, manage MeetingDisplay and MTR device on one platform (YMCS or YDMP)
• Unified configuration, one-touch console is enough

Unified Coordination

This solution enhances user experience and efficiency by enabling seamless coordination between MeetingDisplay and MTR devices, ensuring automatic sleep/wake-up, power synchronization, and intelligent digital signage switching. It also reduces energy consumption, optimizes device utilization, and minimizes manual operations, providing a smarter and more cost-effective meeting environment.

Unified Configuration

You can configure the MTR device and MeetingDisplay uniformly through a touch console, including basic settings, brightness, audio, etc.

Unified Management

All meeting devices are managed through a unified platform, eliminating the hassle of managing multiple terminals and platforms. Devices like MeetingDisplay, MeetingBar, UVC Camera, and so on can all be managed through YMCS or YDMP, allowing customers to oversee various devices on a single platform. Also, as an accessory of the MTR system, the MeetingDisplay can be managed by the Yealink MTR Device regardless of whether it is connected to the network. All device status information is synchronized to the device management platform.

Technical Specifications:

Audio
Built-in Speaker(s): Yes
Number of Speakers: 2
Speaker Power: 12 W

Design
Housing Colour: Black
Panel Mounting Interface: 400 x 400 mm
VESA Mounting: Yes

Display
Anti-Glare Surface: Yes
Aspect Ratio: 16:9
Contrast Ratio (Typical): 1200:1
Display Brightness: 500 cd/m²
Display Diagonal: 65 "
Display Resolution: 3840 x 2160 pixels
Display Technology: IPS
Maximum Refresh Rate: 60 Hz
Touchscreen: Yes
Viewing Angle: 178 °

Network
Bluetooth: Yes
Bluetooth Version: 5.1
Ethernet LAN: Yes
Ethernet LAN Data Rates: 10, 100, 1000
Wi-Fi: Yes
Wi-Fi Standards: Wi-Fi 6 (802.11ax)

Operational Conditions
Operating Relative Humidity (H-H): 10 - 95 %
Operating Temperature (T-T): 0 - 40 °C
Storage Temperature (T-T): -20 - 60 °C

Performance
Operating System Installed: Android 13.0
RAM Capacity: 4 GB
Storage Capacity: 32,000 MB

Ports & Interfaces
HDMI Input Ports Quantity: 3
RJ-45 Ports Quantity: 2
USB 2.0 Type-A Ports Quantity: 2
USB Port: Yes

Power
Input Voltage: 100 - 240 V
Power Consumption (Idle): 0.5 W
Power Source Type: AC
