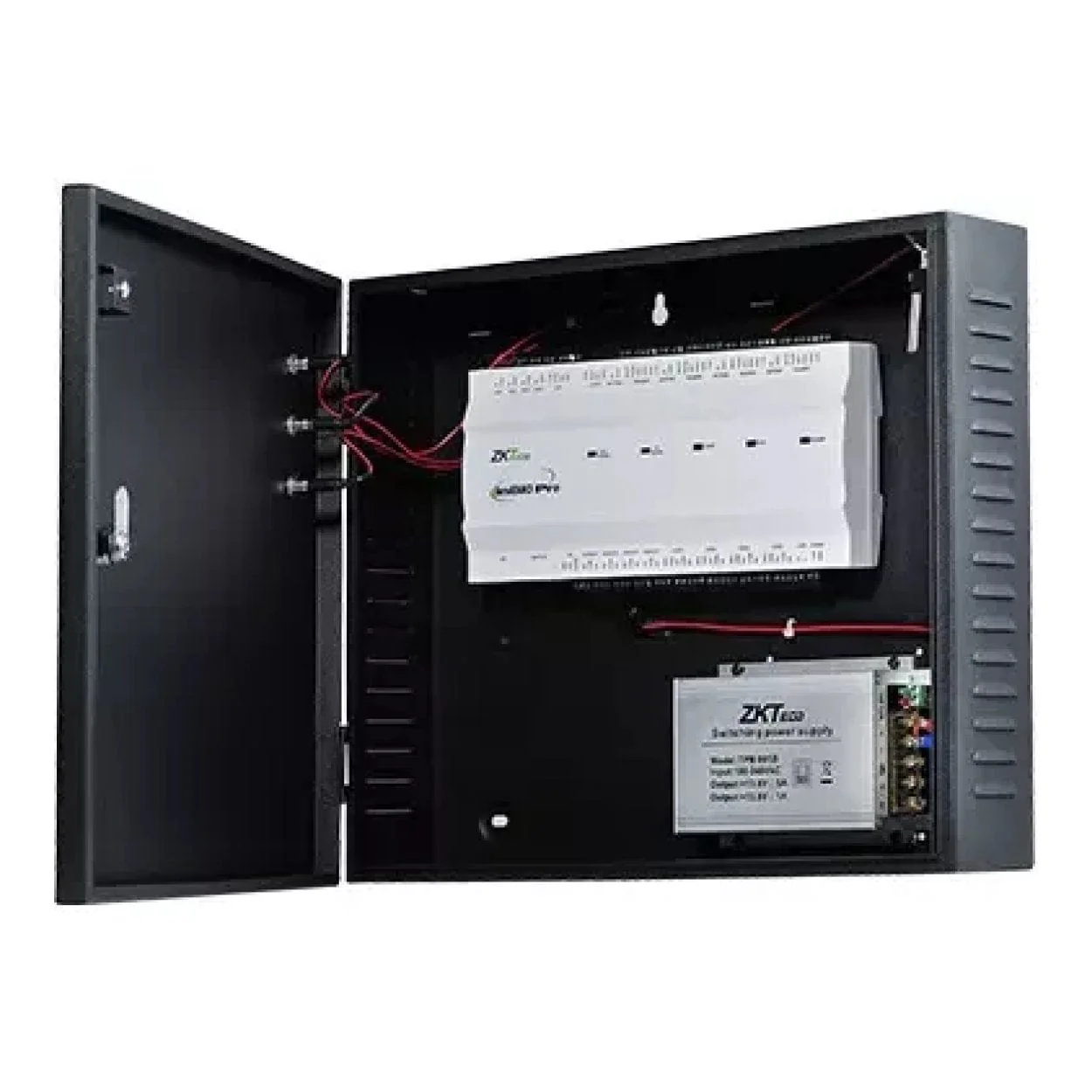

ZKTeco InBio260 Pro Plus Series 2-Door Access Control Panel

ZKTeco InBio260 Pro Plus Series 2-Door Access Control Panel

InBio Pro Plus Series is a project oriented, high-end product line with distinctive features, including  embedded facial and fingerprint authentication, as well as advanced access control functions. Equipped  with TCP/IP, it enables robust remote management and connectivity over local (LAN) and wide area  networks (WAN), enhancing deployment flexibility and scalability.

Comprising the InBio160 Pro Plus, InBio260 Pro Plus, and InBio460 Pro Plus models, the system supports up to 3,000 face templates and 20,000 fingerprint templates, a maximum of 100,000 card users, and 100,000 dynamic QR code capacity.

Specifications

Model Name: InBio260 Pro Plus

Operation System: Linux OS

Hardware: CPU: Single [email protected], RAM: 128MB; ROM: 256MB;

Authentication Method: Card / Password / Fingerprint / Face / QR Code

Access Point Capacity: InBio260 Pro Plus: 2 Access Point

Reader Capacity: 8x RS-485 Readers (ZKTecoRS-485 / OSDP), 4x 26 / 34 / 66-bit Wiegand Readers

IO Expansion Board Capacity: 8pcs EX0808 (RS-485 connection)

User Capacity: 100,000

Card Capacity: 100,000 (1:N) (Standard)

Fingerprint Template Capacity: 20,000 (1:N) (Standard)

Face Template Capacity: 3,000 (1:N) (Standard)

QR Code Capacity: 100,000 (Static QR Code / Dynamic QR Code)

Transaction Capacity: 500,000 (Standard)

Number of Inputs: 4x Exit Button, 4x Door Status, 4x AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)

Number of Outputs: 4x Form C Relay for Lock, 4x Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)

Max. Card Length: Supports up to 66 bits Card Length

QR Code: PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.Dynamic QR codes on the ZKBio CVSecurity mobile application

Communication: TCP / IP x1; RS-485: ZKTeco RS-485 / OSDP (Optional) x1; Wiegand (Input) x4; USB: Type A (USB Drive Only) x1; Aux Inputs x4, Aux Outputs x4 ; Electric Lock x4, Door Sensor x4, Exit Button x4, Alarm x4

Standard Functions: Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback,Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods

Access Control Interface: Wiegand (Card Reader), RS-485(RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader)

Power Supply: 9.6V- 14.4V DC

Operating Temperature: 0-degrees to 45-degrees

Operating Humidity: 20% to 80% RH (Non-condensing)

Dimensions (L * W * H): 226 mm x 106 mm x 36.07mm

Gross Weight: 1.098 Kg
