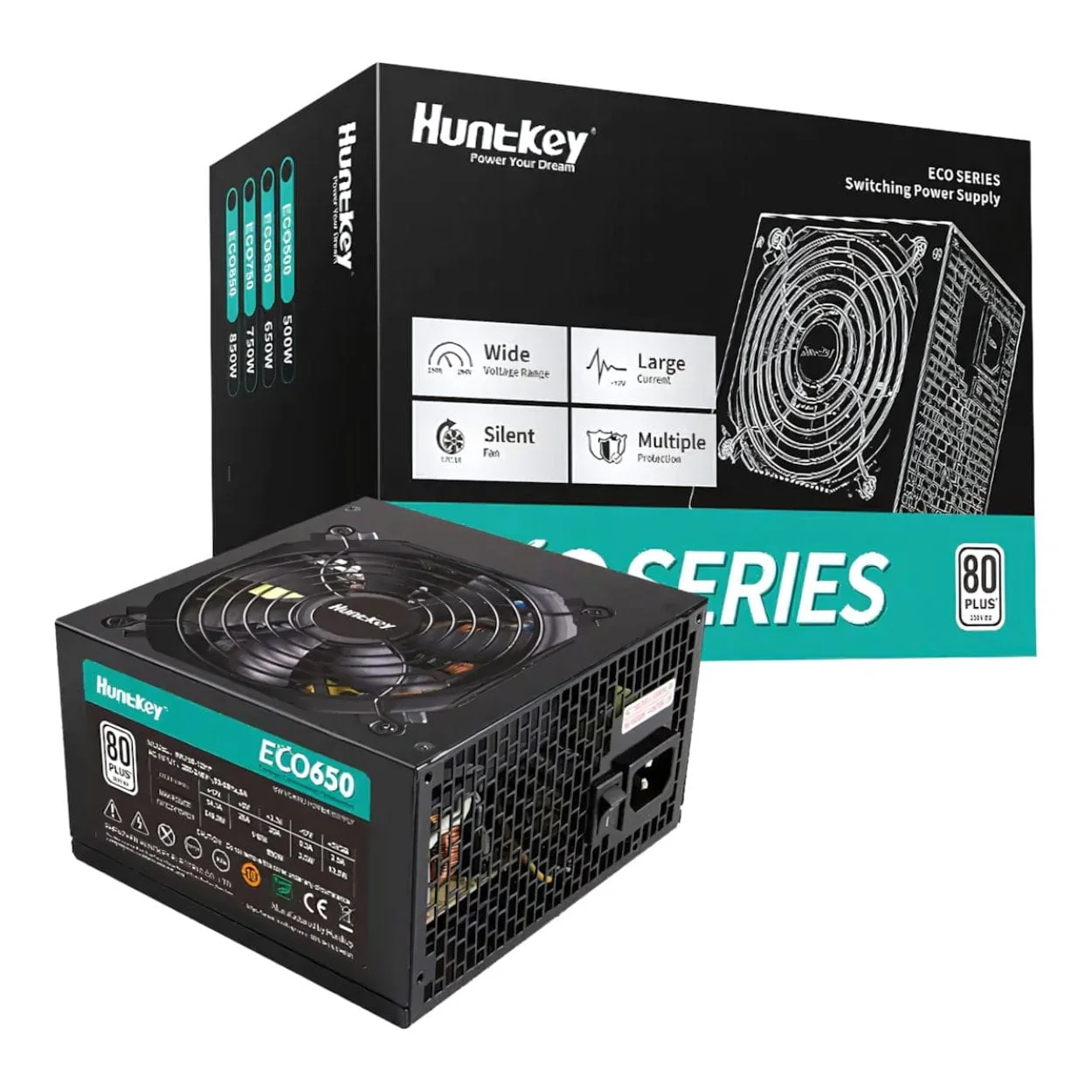

Huntkey ECO650 650W 80 Plus White Power Supply P28-750120000R
Technical Specifications:
Rated Output Power: 650W
80 PLUS Certification: White
Input Voltage: 150 - 264 V
Cooling Fan: 120 mm, Hydraulic bearing
PFC: Active
Dimensions (LxWxH): 140 × 150 × 86 mm
Protection: SCP, OVP, OPP
Certification: CE, CB, RoHS
Warranty: 36 Months
Cable Connections:
- Molex (Peripheral): 3
- SATA: 3
- PCI-E 6+2 pin: 4
- CPU 8-pin/4+4 pin: 2
- ATX 20+4-pin: 1
AC Input: 200-240V~ 8A 50-60Hz
DC Output & Max Output Current:
- +3.3V : 20A
- +5V : 20A
- +12V : 54.1A
- -12V : 0.3A
- +5Vsb : 2.5A
Max Combined Power:
- +3.3V & +5V: 140W
- +12V: 649.2W
- -12V: 3.6W
- +5Vsb: 12.5W
Total Power: 650W
