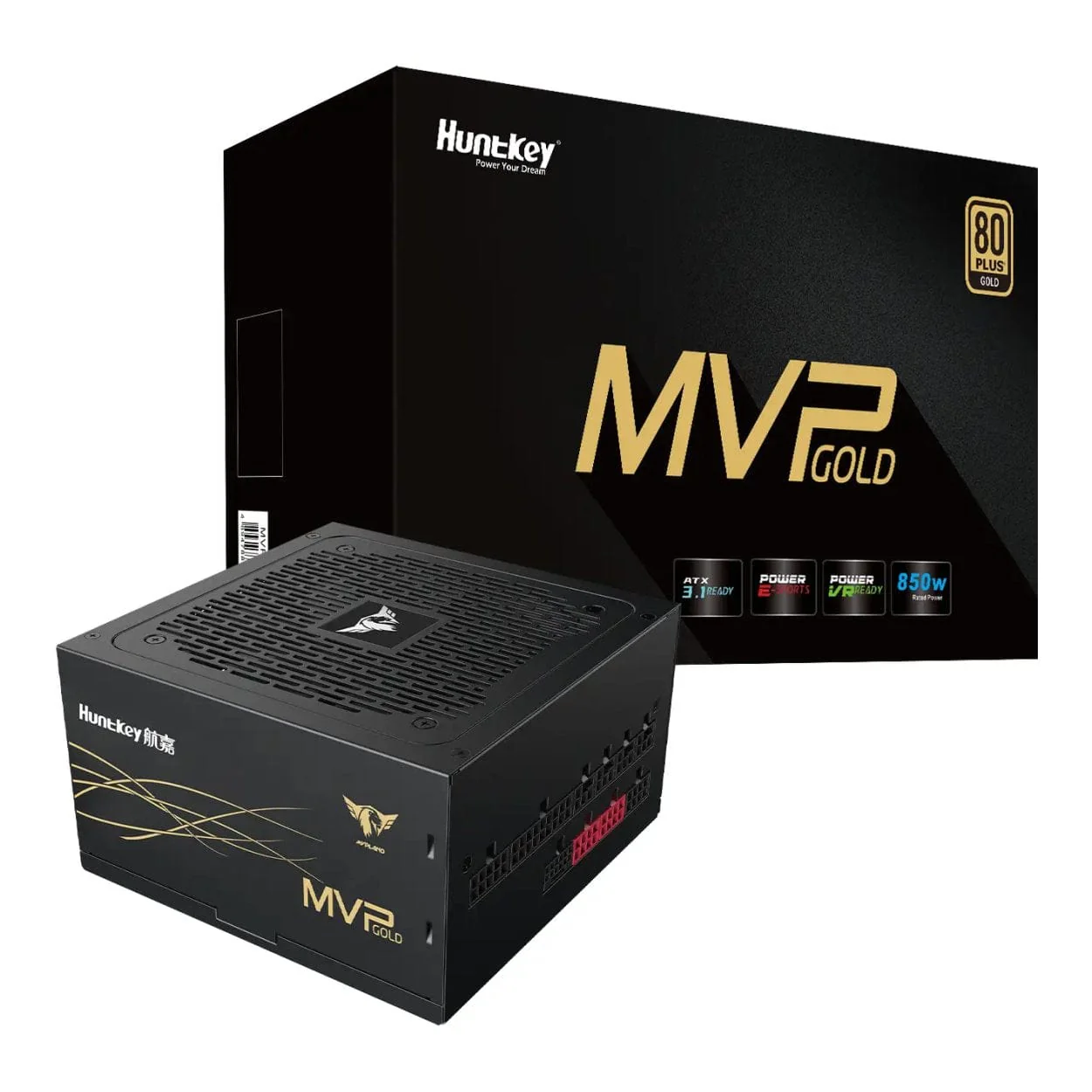

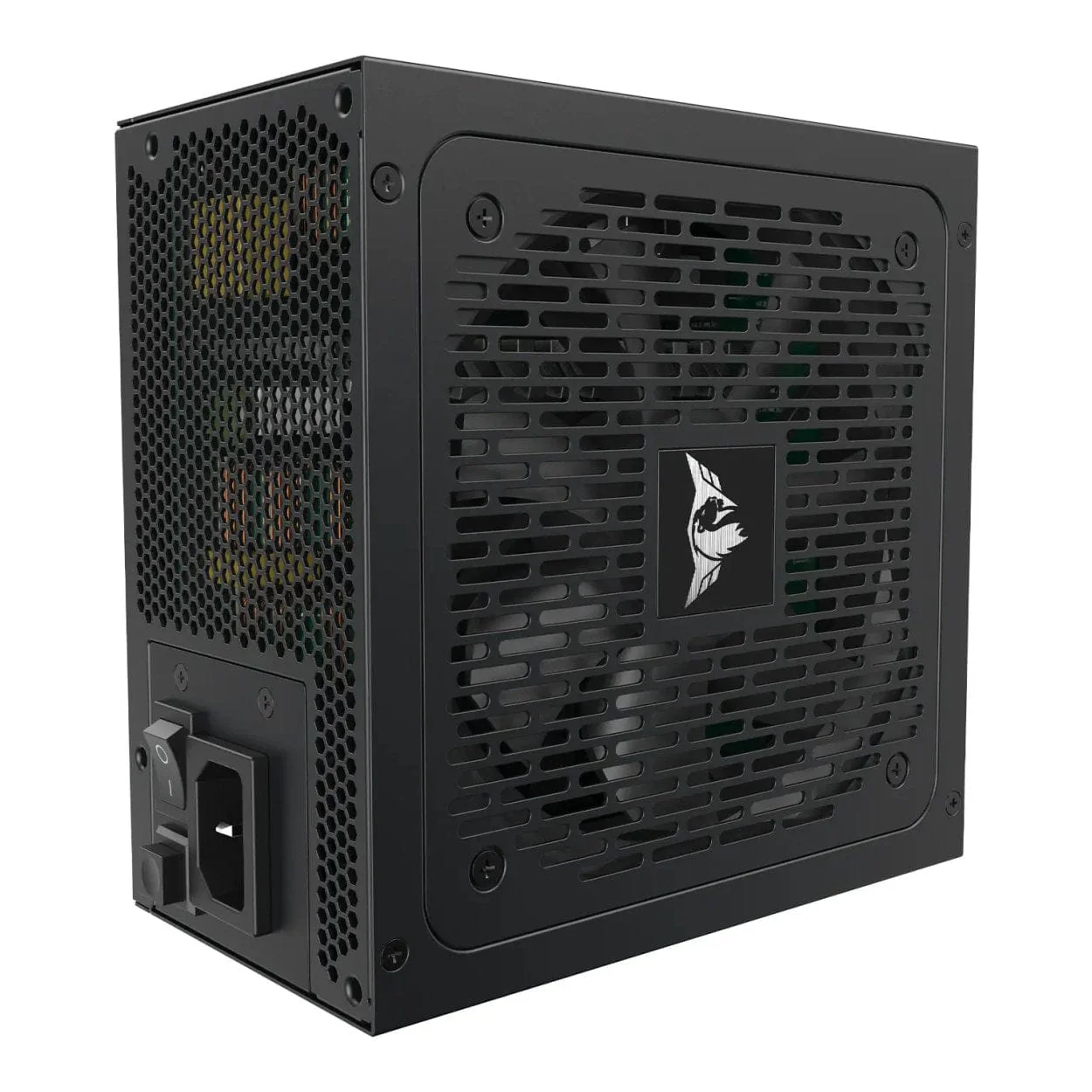

Huntkey MVP K850 850W 80 Plus Gold ATX3.1 Power Supply P11-950560001R
Technical Specifications:
Rated Output Power: 850W
Form Factor: ATX12V V3.1
80 PLUS Certification: Gold
Input Voltage: 90-264V
Cooling Fan: 120 mm, Dual ball bearing
PFC: Active
Dimensions (LxWxH): 150 × 150 × 86 mm
Protection: OVP, OPP, SCP, OCP
Certification: CCC, RoHS
Warranty: 60 Months

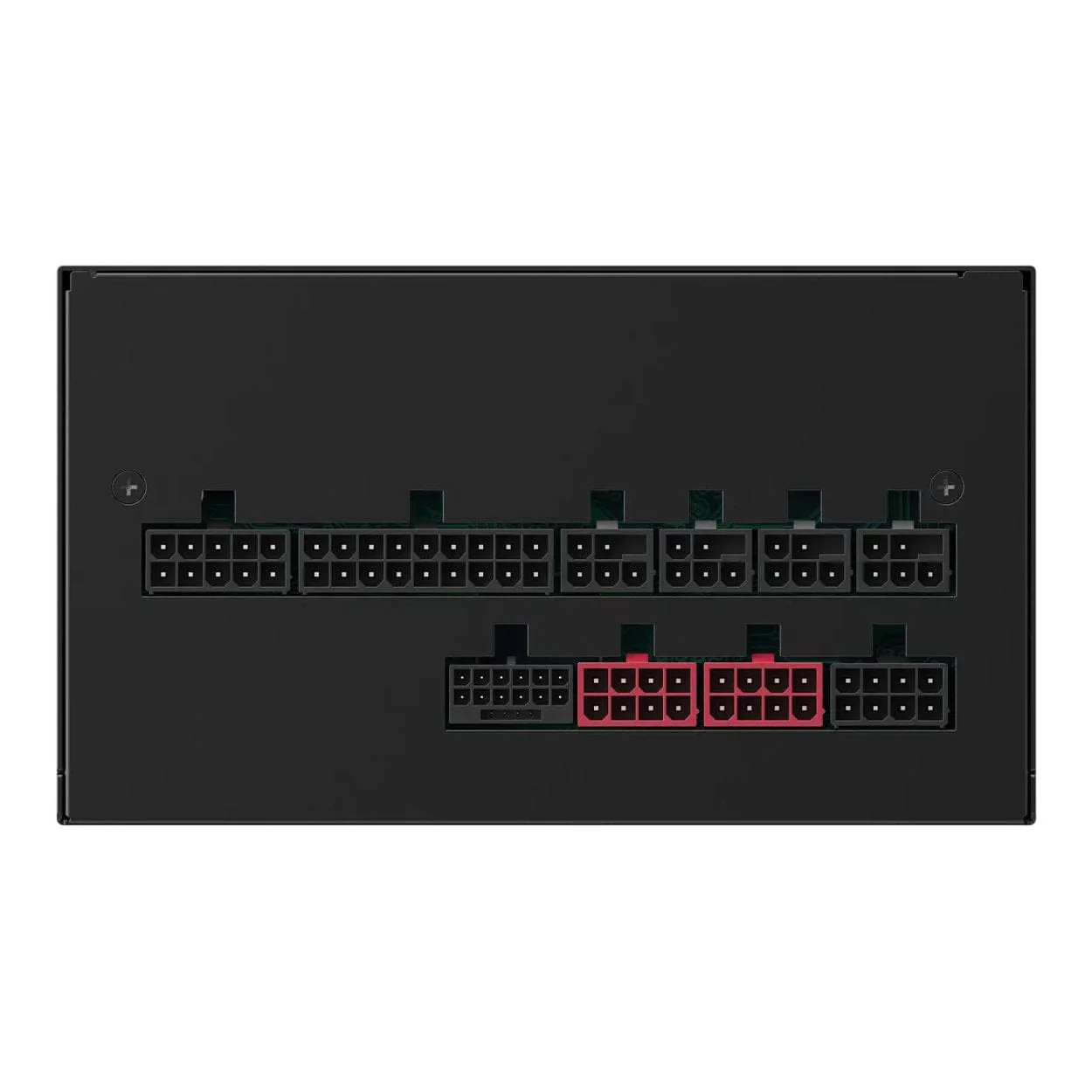

Cable Connections:
- Molex (Peripheral): 3
- SATA: 4
- PCI-E 6+2 pin: 4
- PCI-E 12V 2x6 pin: 1
- CPU 8-pin/4+4 pin: 2
- ATX 20+4-pin: 1
AC Input: 100-240V~ 10-5A 50-60Hz
DC Output & Max Output Current:
- +3.3V : 25A
- +5V : 25A
- +12V : 70.8A
- -12V : 0.5A
- +5Vsb : 2.5A
Max Combined Power:
- +3.3V & +5V: 140W
- +12V: 849.6W
- -12V: 6W
- +5Vsb: 12.5W
Total Power: 850W
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Huntkey MVP K850 850W 80 Plus Gold ATX3.1 Power Supply P11-950560001R
Technical Specifications:
Rated Output Power: 850W
Form Factor: ATX12V V3.1
80 PLUS Certification: Gold
Input Voltage: 90-264V
Cooling Fan: 120 mm, Dual ball bearing
PFC: Active
Dimensions (LxWxH): 150 × 150 × 86 mm
Protection: OVP, OPP, SCP, OCP
Certification: CCC, RoHS
Warranty: 60 Months
Cable Connections:
- Molex (Peripheral): 3
- SATA: 4
- PCI-E 6+2 pin: 4
- PCI-E 12V 2x6 pin: 1
- CPU 8-pin/4+4 pin: 2
- ATX 20+4-pin: 1
AC Input: 100-240V~ 10-5A 50-60Hz
DC Output & Max Output Current:
- +3.3V : 25A
- +5V : 25A
- +12V : 70.8A
- -12V : 0.5A
- +5Vsb : 2.5A
Max Combined Power:
- +3.3V & +5V: 140W
- +12V: 849.6W
- -12V: 6W
- +5Vsb: 12.5W
Total Power: 850W
